DC & AC Electricity

We've known what is Electricity last contents.
Before talking about Motor, finally I would like to tell you about AC & DC Electricity.

DC Electricity has both poles "+" and "-", and the shape of frequency is always linear.
AC Electricity doesn't have any pole, but a sign frequency is moving.

You may have a question why AC Electricity has 2 leadwires.
The reason is Electricity should be operated through connected Electricity road.

Easy understanding about Electricity

Let's back to the Basic.

There are so many people to use Motor in the world, but I'm not telling you not about Motor Kinds. Basically Motor is operated by Power, and the power is almost Electricity.
Now I show you the simple explanation about Electricity.

Finally when we are going to use Motor, we need to consider electrical conditions. I will tell you next time about this.

Any question? Leave a message or comment.

What is Rating on AC Motor_Induction Motor?

Rating means how long the motor can use.
There are 3 Ratings on AC Induction Motor.

Continuous Rating

- When the rated load is imposed under the rated voltage and frequency, the continuous rating means that it can guarantee the continuous operation which will not result in exceeding the specified temperature and comply with the other requirements.

* Induction Motor

* 2 Pole Motor

Short-time Rating

-When the rated load is imposed under the rated voltage and frequency, the intermittent rating means the operation within a specified period of time(ex. 5min, 10min, 30min,etc..) will not result in exceeding the specified temperature and comply with the other requirements.

* Reversible Motor

* Torque Motor

Intermittent Periodic Rating

-When a motor is used with the rated load under the rated voltage and frequency, the interactive rating means that the cyclic operations of stopping and running with a certain load will not result in exceeding the specified temperature and comply with the other requirements.

 * Brake Motor

 * Clucth Brake Motor

Speed Control Motor

AC Speed Control Motor

1. Structure of Speed Control Motor

Description

① The speed can be set broadly(50Hz : 90~1400rpm, 60Hz : 90~1700rpm) with Speed controller.

② Speed of the motor is sensed by feedback of T.G which is internal in the Speed Motor.

    Depending on frequency, the number of rotation is not changed.

 ③ Speed Control Motor can be used with Induction, Reversible, Brake, Clutch Brake Motor.

2. Speed Control Motor & Controllers

Brake Motor

Today I explain what is AC Brake Motor.

1. Structure of Brake Motor

① Brake attached to the rear motor can maintain the load, when power is off.

② It is optimal for emergency brakes and vertical load applications when power source is off.

③ The frequent and instantaneous directional changes are possible. It is possible to make 6 stops per minute with more than 3 seconds of stoppage.

④ The Motor and brake use the same power source.

2. Section View of Brake Motor

FEATURES

The brake is activated when the power source is turned off.

Shorten overrun. (Overrun times: 2~4 times)

HOLDING TORQUE (0.5~10 kgfcm)

Overrun can shorten by 1~2 times when choosing

Electromagnetic brake.

Reversible Motor

Last time I introduced Induction Motor.

Induction Motor is a basic motor in all kinds of AC Motor.

But if you want a function of changing running direction with economic price, I can recommend you the Reversible Motor.

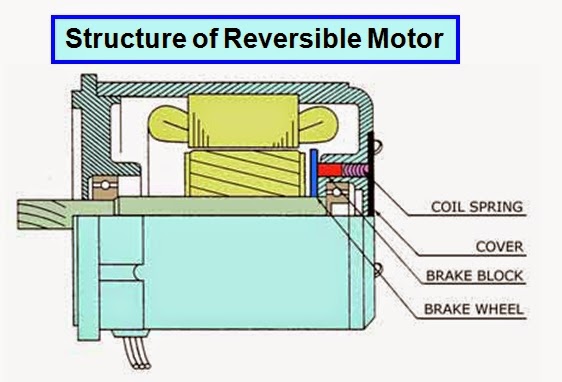

This is the structure of Reversible Motor.

Features of Reversible Motor

① Possible for frequent switch of direction

② Starting torque of Reversible Motor is designed to be large for

     bi-directional operation within short times.

③ Use built-in brake mechanism to shorten overrun

④ Suitable for Using frequent switch of direction

⑤ 30 minutes of Rated duty

Induction Motor

Today I introduce the stucture of AC Induction Motor.

It is important to keep the same airgap (360degree) as fixing stator and rotor by housing.

To keep the same airgap, relationship among Stator, Rotor, and Housing should be perpendicular and parallel.

*It is important to perpendicular and parallel for Motor assembly.

Motor Kinds_AC Small Geared Motor

This is a simple explanation about AC Motor Kinds.

Generally Motor Kinds are distinguished by Motor Structure.

ex) Reversible Motor = Induction Motor + Temporary Brake

What is Motor?

Basically I would like to explain what motor is.

The motor is a driving source of the device when the device you want to do something.

That is, when supplying electricity to the motor the electrical power makes rotating power by the rotor. This rotating power is transited through belts and gears, and direct object to need moving.

Therefore, the motor is an important thing that can be described as the heart of the machine in any products.

In short, the motor is a device that changes electrical energy into mechanical energy.

Small Geared Motor Application

Small Geared Motors are used widely wherever needs an electric power.
Above example is one of representative application, and other applicable area is numerous.

These are what I'm handling main items.

No need to say, just look at the sheet.

Perhaps there is few people can understand what it is.

Of course I will explain this sheet to anyone.

* O: Oriental Motor

  P: Panasonic Motor

  S: SPG Motor

New Launched 104mm 400W Geared Motor

104mm 400W Geared Motor Launch!
400W is only for 60Hz Area, like for Korea and US, some of Japan, and so on.
The special feature is compact sized geared motor compared to general motor. (160mm)

If any question, mail to me.

Are you looking for an agent dealing small q'ty of DKM Motor and Gearbox?

Now I'm introduce the great quality and reasonable price of Small Geared motor to you.

Company: DKM Motor Co., Ltd.

Location: 4F, Incheon Techpia Na-Bldg, Geobukro 17,

            Seo-gu, Incheon, Korea

Zipcode: 404-825

Of course you might need a bunch of sets for mass-production.

Also you might need only a peace of motor or gearbox.

Let me know your inquiry. Anything is fine.
